Slitting and Rewinding Machine for Paper, Films

Basic Info

Model No.: GFTW3500C

Application: Mechinery&Hardware

Type: Roll Slitter

Work Method: Flat Knife Slitting

Structure: Guide Roller Part

Packaging Type: Film

Classification: Ultrasonic Label Cutting Machine

Applicable Process: Final Inspection

Suitable Substrates: Film Cutting

Packaging Material: Plastic

Maximum Unwind Diameter: Φ800mm

Basic Material: BOPP PET POF Film

Thickness: 12-25μm

Effective Width: 600-3500mm

Maximum Rewind Diameter: Φ300mm

Maximum Unwind Width: 3500mm

Minimum Unwind Width: 600mm

Rewind Paper-core: 3 Inches (ball-type Shaft)

Running Speed: 0-350m/min

Complete Power: 380V/3 Phase, 50 Hz About 35 Kw

Additional Info

Packaging: SEAWORTHY WOODEN OR NAKED

Productivity: 200m/min

Brand: SUNNY

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 100 SETS PER YEAR

Certificate: CE

HS Code: 8477

Port: SHANTOU

Product Description

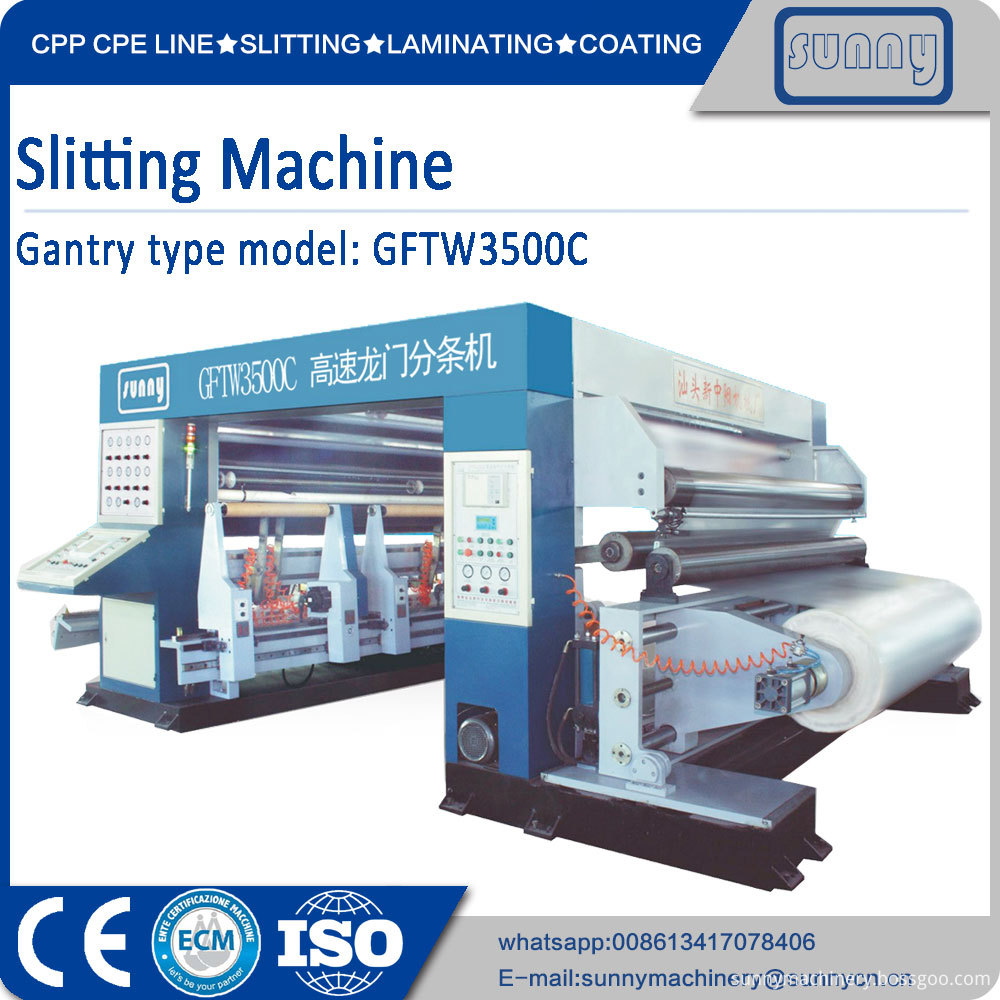

Slitting and Rewinding Machine for Paper, Films GFTW3500C

Paper Roll Automatically Rewinding Slitting Machine is highly precision and sensitive equipment for BOPP PET POF film. Machine has running stable functions and highly visual, high-degree automatically, it is the necessary facility in printing, packaging, food, pharmaceutical industries.

Machine Main Technical Parameters:

1. Basic material: POF, thickness 12-25μm

2. Effective width: 600-3500mm

3.Maximum unwind diameter: φ800mm

4.  Maximum rewind diameter: φ300mm

5.Maximum unwind width: 3500mm (multi-pieces slit)

6.  Minimum unwind width: 600mm

7. Rewind paper-core: 3 inches (ball-type shaft)

8. Running speed: 0-350m/min

9. Detection precision: ±0.15mm

10.Guiding precision: ±0.1-.015mm (depends on the detection line or picture)

11.Complete power: 380V/3 phase, 50 Hz about 35 kw

12.Enough space should be reserved both rewind and unwind, so that it`s easy to observe the product quality.

Company Information:

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 19 years of experiences.

Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.
