Roll to roll slitting rewinding machinery

Basic Info

Model No.: GFTW2600A

Application: Mechinery&Hardware

Type: High-Speed Slitting Machine

Work Method: Flat Knife Slitting

Structure: Guide Roller Part

Packaging Type: Film

Classification: Ultrasonic Label Cutting Machine

Applicable Process: Final Inspection

Suitable Substrates: Film Cutting

Packaging Material: Plastic

Slitting Material: 10-50μm、POF

Max. Speed: 500 M/min

Unwind Maximum Loading Weight: 1000 Kg

Maximum Diameter: 600mm

Rewind Maximum Diameter: 600mm

Maximum Effective Width: 2400mm

Machine Total Power: AC 380V 4 Wires About 35KW

Machine External Dimension: 2100㎜×4500㎜×2000㎜ (L X W X H)

Machine Self-weight: About 4 Tons

Air Source Air Pressure: More Than 5㎏/㎝2

Additional Info

Packaging: NAKED OR WOODEN PALET

Productivity: 250m/min

Brand: SUNNY

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 100 SETS PER YEAR

Certificate: CE

HS Code: 8477

Product Description

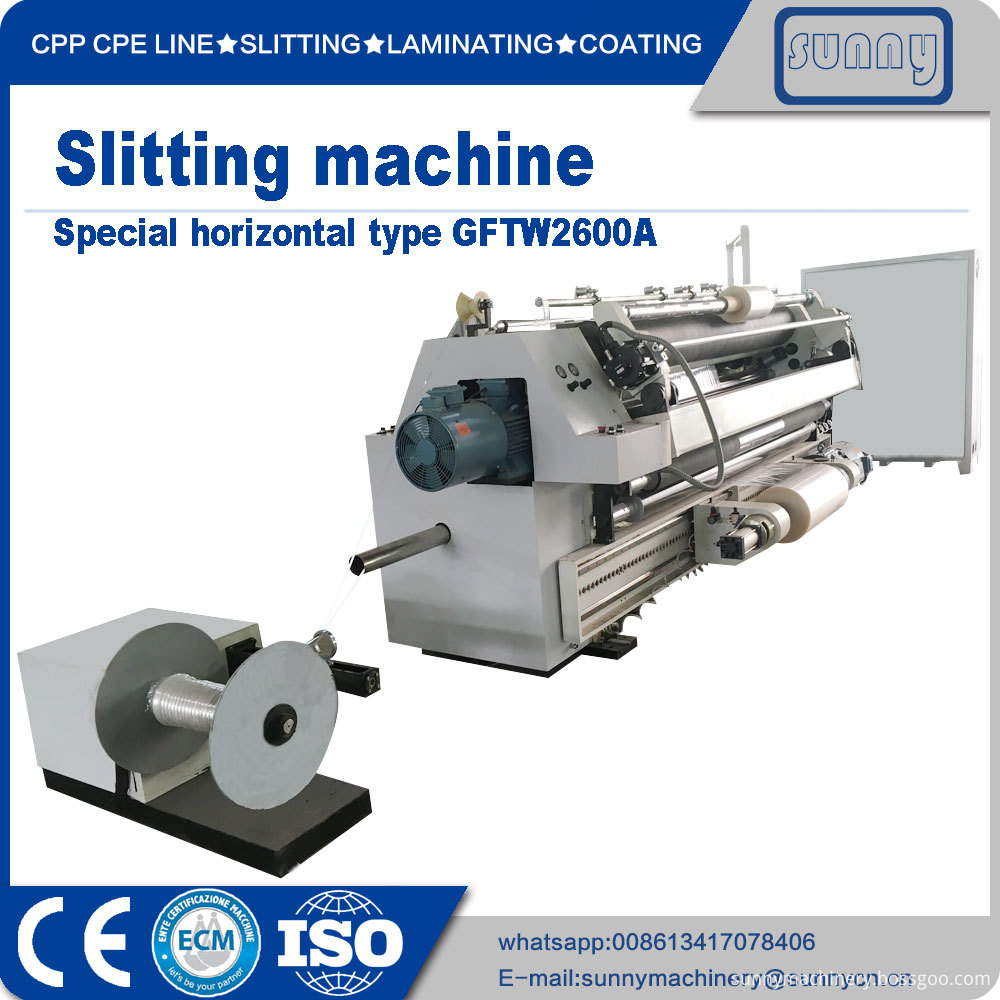

Roll to roll slitting rewinding machinery GFTW2600A

Application: Roll to roll slitting rewinding machinery GFTW2600A is used for slitting or rewinding jumbo roll to specified small rolls or specified width. Applying film is BOPP, CPP, BOPET, LDPE, HDPE, Rigid PVC, and so on.

Main technical parameters:

1.Slitting material: 10-50μm.POF

2.Max. speed: 500 m/min, normal slitting speed: 300 m/min

3. unwind maximum loading weight: 1000 kg, maximum diameter: 600mm

4. Rewind maximum diameter: 600mm

5. maximum effective width: 2400mm, maximum slitting width: 2400mm, maximum secondary rewinding width: 2600mm, minimum slitting width: 300mm

6. Rewind neatness less than 1mm

7. machine total power: AC 380V 4 wires about 35KW

8. Air source air pressure more than 5㎏/㎝2

9. machine external dimension: 2100㎜×4500㎜×2000㎜ (L x W x H)

10. Machine self-weight: about 4 tons

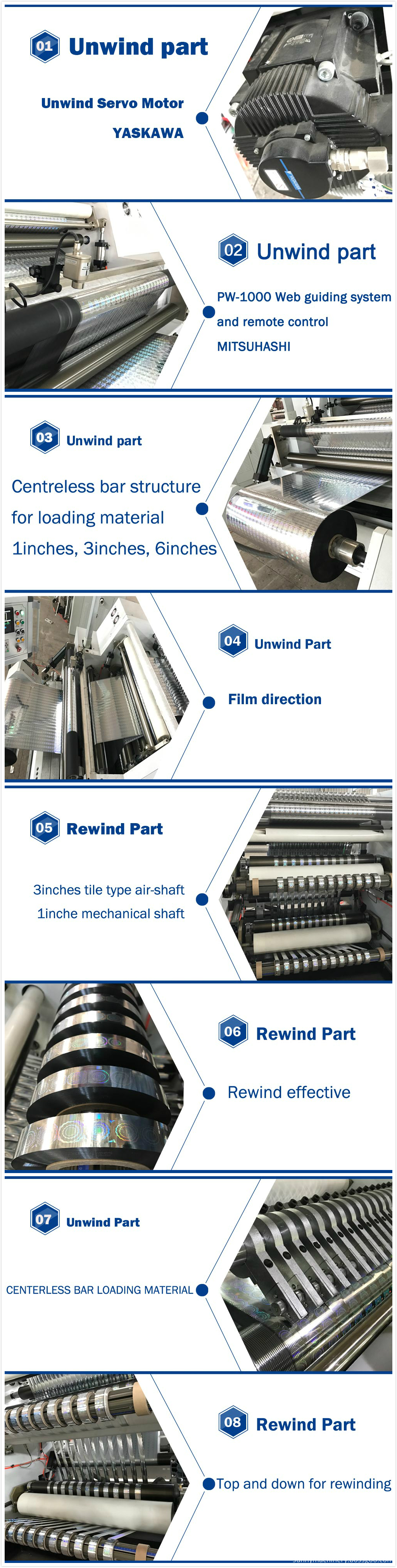

More details as below:

Exhibitions:

Company Information

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 19 years of experiences.

 Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

 All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

  Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.
