Flexible packaging Film slitter Rewinder Machine

Basic Info

Model No.: GFTW2000C1

Application: Mechinery&Hardware

Type: High-Speed Slitting Machine

Work Method: Flat Knife Slitting

Structure: Guide Roller Part

Packaging Type: Film

Classification: Ultrasonic Label Cutting Machine

Applicable Process: Final Inspection

Suitable Substrates: Film Cutting

Packaging Material: Plastic

Maximum Raw Material Unwind Diameter: ≤Φ800mm

Maximum Raw Material Rewind Diameter: ≤Φ550mm

Maximum Slitting Width: ≤2000mm

Slitting Final Products Width: 50mm-2000mm

Slitting Final Film Thickness: OPP12μ-50μ

Machine Speed: 20-280m/min

Guiding Precision: ＜±0.3mm

Complete Machine Total Power: About 13.5KW

Complete Machine Weight: About 5.5 Tons

External Dimension: 1800mm X 3470mm X 1400mm

Additional Info

Packaging: NAKED OR WOODEN PALET

Productivity: 250m/min

Brand: SUNNY

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: c100 SETS PER YEAR

Certificate: CE

HS Code: 8477

Product Description

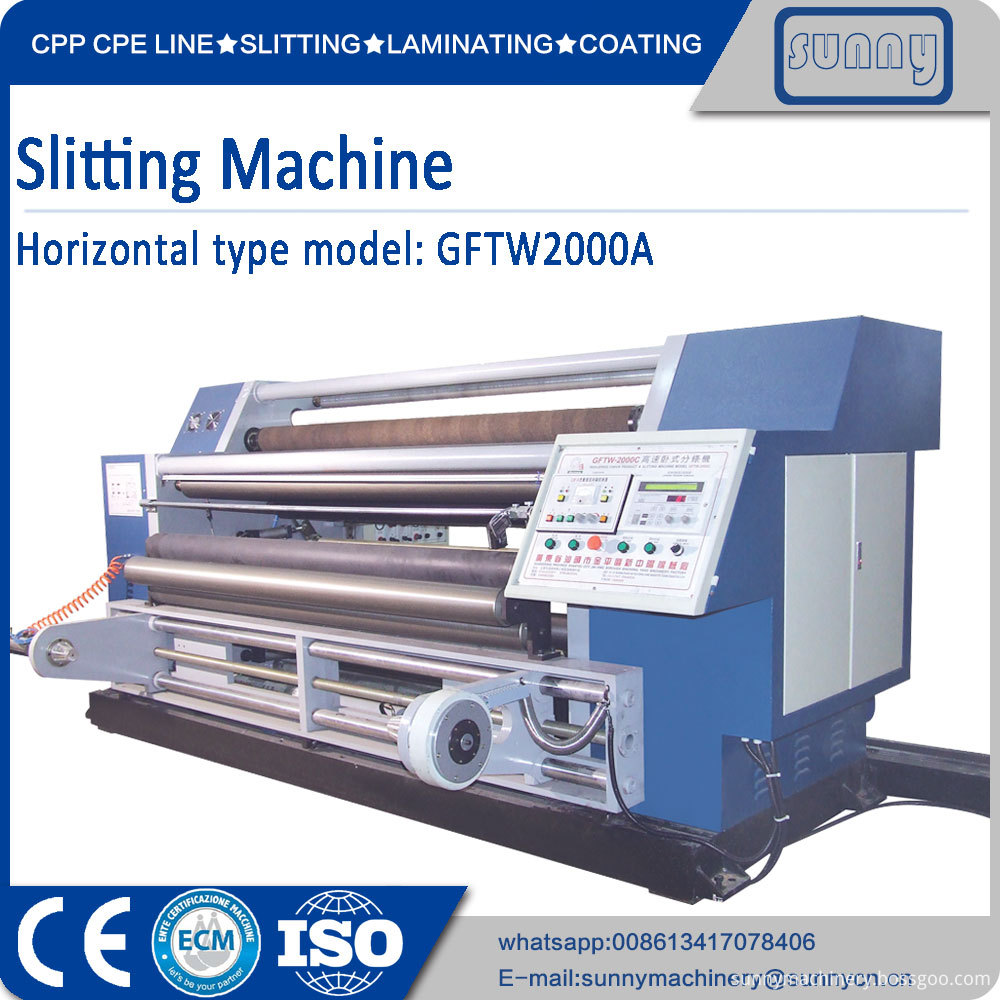

Flexible packaging Film slitter Rewinder Machine GFTW2000C1

Application Flexible packaging Film slitter Rewinder Machine is easy and simple to handle, raw material adaptation is good, material plastic film etc that is suitable for slitting.

Main technical parameters of high speed slitting machine

① Maximum raw material unwind diameter: ≤Φ800mm

② Maximum raw material rewind diameter: ≤Φ550mm

③ Maximum slitting width: ≤2000mm

④ Slitting final products width: 50mm-2000mm

⑤ Slitting final film thickness: OPP12μ-50μ

⑥ Machine speed: 20-280m/min, rewinding speed: 250m/min

⑦ Guiding precision: ＜±0.3mm (depends on testing line or picture)

⑧ Complete machine total power: about 13.5KW

⑨ Complete machine weight: about 5.5 tons

⑩ External dimension: 1800mm x 3470mm x 1400mm

Start creases control within 50m, non obvious longitudinal stripe

More details as below:

Exhibitions:

Company Information

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 19 years of experiences.

 Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

 All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

  Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.
