2 side PE PP extrusion laminating machine

Basic Info

Model No.: JF4300

Type: Profile Extruder

Plastic Processed: PP

Product Type: Extrusion Molding Machine

Feeding Mode: One Feed

Assembly Structure: Integral Type Extruder

Screw: Single-Screw

Engagement System: Full Intermeshing

Screw Channel Structure: Deep Screw

Exhaust: Don't Exhaust

Automation: Automatic

Computerized: Computerized

Name Of Product: Single Screw Extrusion Laminating Machine

Laminating Width: Laminating Width

Laminating Thickness: 0.015-0.08mm

Extruder Diameter: 150x35

Working Speed: 20-100m/min

Width Of T-Die: 4250mm

Rated Power: 380kw

Dimension: 12x20x3 M

Weight: 42 Tons

Length Of Roller: 4200mm

Additional Info

Packaging: NAKED PACK BY SHRINK FILM

Productivity: 100M/MIN

Brand: SUNNY

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 100 SETS PER YEAR

Certificate: CE

HS Code: 84778000

Port: SHANTOU

Product Description

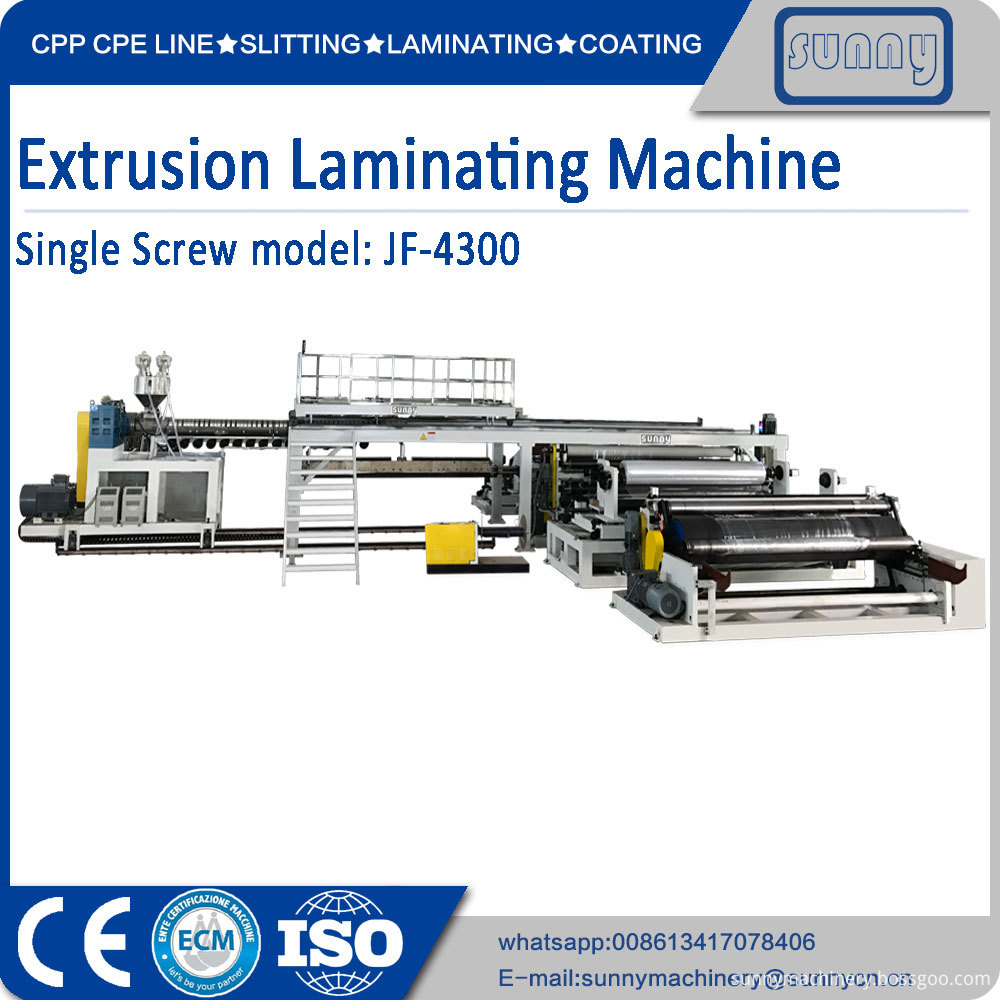

2 side PE PP extrusion laminating machine model JF4300

Application:

Coating & Laminating machine for the production of coating melting PP or PE on paper, weaving fabric, or laminating the paper, BOPP, non woven fabric, film & aluminum etc., with weaving fabric.

1). Laminating width 3000-4100mm

2). Laminating thickness 0.015-0.08mm (±0.005mm)

3).Extruder Ф150x35

4).Working speed 20-100m/min

5).Mechanical speed 20-120m/min

6).Length of roller 4200mm

7).Width of T-die 4250mm

8).Core of rewind & unwind roller Ф219 (outer) x 205 (inner) x 4300mm (L)

9).Rated power 380kw

10).Compressed air 1.5 M 3/ min;

11).Cooling water 1.2 M 3/ min;

12). Dimension: 12x20x3 M

13). Weight 42 tons

More details as below:

Company Information

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 17 years of experiences. Over the years, we always set a motto of "science and technology as well as customer-centric products" that penetrated to the market quickly, obtained widespread and highly praised & trusted from new and existing clients. Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation. All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.
